jb-map

Copyright (C) 2019-2021 Jeffrey Bostoen

🍻 ☕

Need assistance with iTop or one of its extensions?
Need custom development?
Please get in touch to discuss the terms: info@jeffreybostoen.be / https://jeffreybostoen.be

Pro extension

This extension was complex to develop and is now very feature rich, so this became a professional extension.

What?

Adds a Map tab to iTop objects (‘detail view’). In this tab, it shows a map with the feature geometry (Point, LineString, Polygon).

There’s also a dashlet to show all objects of a class on a map. Here, it also offers a search/filter bar.

Map tab features

• Adding, modifying or clearing the feature from the object details is very straight forward.
• Last used basemap is remembered per user and per class (cookie)

Dashlet features

• search form with a look similar to iTop’s native search for objects
• a feature can be clicked upon to see its details in a popup. Customizable which attributes (text-based only) are shown.
• if a feature is clicked on while holding the [Alt]-key, iTop immediately redirects to the object details page
• if enabled, clicking on an empty spot on the map will result in redirection to a new object creation page with geometry (Point) prefilled.
• if enabled, objects are clustered on zooming out. Hovering over the cluster gives a sneak peak of the clustered features.
• last used basemap is remember per user and per dashlet (cookie)

Configuration options

• default zoom level
• default map center
• limit which types of features are allowed (Point, LineString, Polygon)
• source CRS (coordinate reference system)
• target CRS (coordinate reference system)
• add background maps (such as OpenStreetMap, Stamen, WMS, custom images, …)
• set default map
• …

Custom PHP Interfaces

• With these interface, additional controls can be added to the toolbar above the map or within the actual map (HTML) object.

Requirements

• iTop 2.7 (might work with 2.6, untested so far)
• PHP 7.2 or newer

Screenshots

Details view

• There’s a map tab when viewing the object details.
• When modifying, there’s an option to clear the geometry and pick a geometry type (Point, LineString, Polygon); predefined in the datamodel.
• Extensions are possible (but not included), such as an address lookup bar.
• Maps can be rotated (ALT + Shift + drag) or put into fullscreen (small button top right).

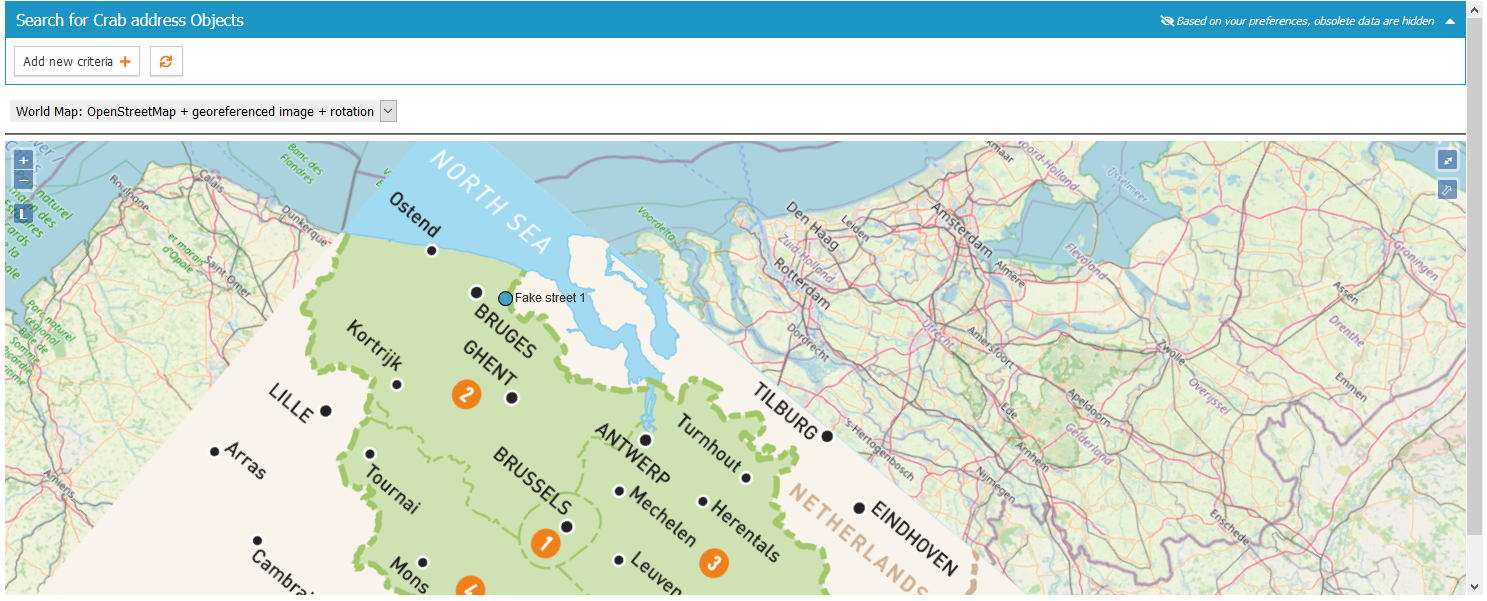

Dashlet

• Includes a dashlet with a search/filter bar, similar to iTop’s native lists.
• There’s also a cluster feature.
• Clicking the map on an empty spot will show the object creation dialog with the (point) geometry prefilled.
• Clicking a feature shows (limited) details (only ‘alphanumerical’ attributes are supported at this moment, not pictures/data).
• This dashlet uses a map with a georeferenced image.

Documentation

• See Documentation

Limitations

• Currently 1 feature per object.
  • It has to be a SinglePoint, SingleLineString or SinglePolygon.
  • MultiPoint, MultiLineString, MultiPolygon or other geometry types are unsupported.
• Complex features with lots of points may be too large to store. (unlikely)
• Currently stored the same way as an AttributeText (so not a MySQL geometry field). This is done to limit future compatibility issues with iTop.
• Background layers (such as OpenStreetMap) require an active internet connection. However, it is possible to run a GIS server offline.
• Bulk modification: there’s no map, just a field with a textual presentation of the coordinates.
• Images should be georeferenced in advance.

Good to know

Using QGIS Desktop (open source and free):

• the data can be quickly visualized (not edited!) and geospatial analysis can be performed.
• images (such as floor plans etc.) can be georeferenced (put onto a real world map at the right spot)

Translations

• French translation by Guillaume Lajarige (@Molkobain)

Cookbook

XML:

• how to add a new attribute type ‘AttributeGeometry’ to some classes (Location)

PHP:

• how to add an extra tab to the details view
• how to add menus
• how to get current module settings
• how to obtain a list of all iTop attribute names to check if an attribute is present (‘geom’)
• how to get the label (translation) of attributes
• how to add a CSS style, a CSS stylesheet, additional JavaScript libraries, JavaScript and HTML code
• how to create a custom dashlet
• how to hide a field
• how to create a custom attribute type
• …

iTop internals

• how to redirect to iTop new object creation page AND prefill information

Libraries

• OpenLayers 6.5.0
• Proj4JS 2.6.3
